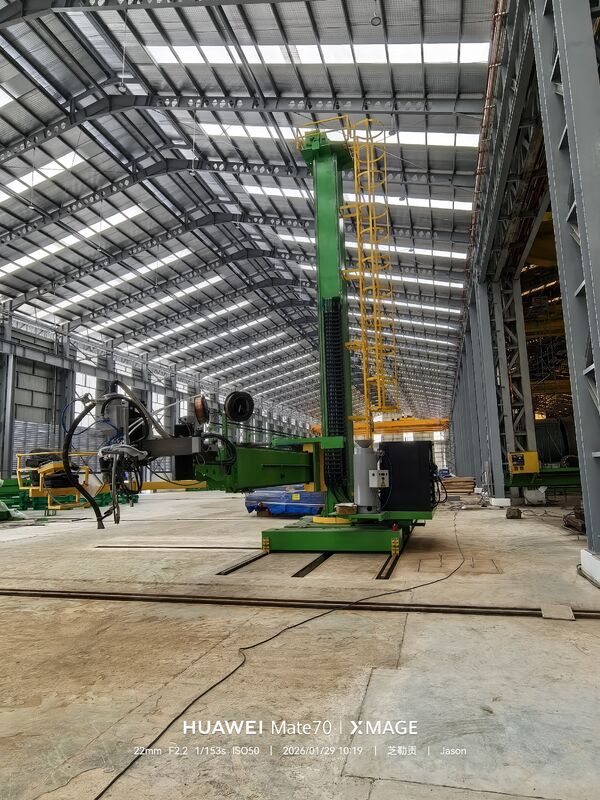

7x7 Column Boom Welding Manipulator with LINCOLN Tandem SAW Weld Machine

7x7 Column Boom Welding Manipulator with LINCOLN Tandem SAW Weld Machine

Brief introduction:

Reachability vertical 7m stroke & stretch 7m stroke heavy duty welding column boom.

Integrated with LINCOLN tandem SAW welding system.

PLC contorl. Laser height sensor for torch adjustment.

Description of column boom welding manipulator:

• Column boom tank welding manipulators are a versatile and rugged solution to obtain up to 8m of lift and reach to duplicate the function of a highly skilled welder.

• Column boom tank welding manipulators are used to locate a weld head to a desired position for welding in a stable and secure manner.

• Once in position, the part is moved during welding to produce high quality welds.

• Welding is performed using SAW, either single wire, or twin wire twin arc.

• Manual or powered mobile sub-based cars can be included for varying length weldments and procedures.

Main parameter:

Column boom welding manipulator feature:

• The column boom welding manipulator are initially designed to save labor costs especially at lager workpieces and when a column boom is been used in combination with a positioner or rotator.

• It is designed and robustly build to withstand rugged work environments.


• Working with column boom welding manipulator is the next step in automated welding.

• All vertical and horizontal guidings are precisely machined for smooth movement.

• Solid state inverter for variable speed of horizontal travel and travel carriage.

• High tensile roller chain used for vertical travel with the addition of a counter balance system with the column that provides smooth, effortless travel.

• Anti-fall device and limit switches for all motions.

Application

1. Pressure vessels welding

2. Pipe manufacturing industries

3. Wind power fabrication

4. Chemical & fuel storage tank fabrication

5. Any heavy cylindrical welding job

Delivery picture:

Points you may concern:
Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.

Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.

After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.

Product name:
automatic welding center, column boom automatic welding center, CaB, automatic welding center boom,automatic welding machine, automatic welding center, cross beam column, welding manipulator;
